Triggering Authentication Dialogs Inside Sandboxed Iframes

This post documents an unexpected behavior in sandboxed iframes: a browser authentication dialog (a modal credential prompt) can be triggered inside an iframe sandboxed without allow-popups, as long as allow-scripts is present.

The result is a modal authentication prompt that appears even though the sandbox policy is intended to prevent disruptive user interface dialogs.

Requirements

The scenario requires a sandboxed iframe with scripts enabled but popups disabled:

<iframe sandbox="allow-scripts"></iframe>

The Trick

Even without the allow-popups directive, it is still possible to trigger a Basic Authentication dialog inside the sandboxed iframe.

If you control the src attribute of the iframe, you can simply load a URL that responds with an HTTP 401 challenge, such as:

https://httpbin.org/basic-auth/user/pass

or your own server configured for HTTP Basic Authentication.

When the browser receives the WWW-Authenticate header, it automatically displays the authentication prompt — effectively a modal dialog — despite the iframe lacking allow-popups.

This demonstrates that authentication dialogs are not governed by the iframe sandbox popup restrictions, unlike alert(), prompt(), or confirm().

Related Research

A similar behavior was previously mentioned in the context of CSS Injection by @EdOverflow, documented in the Bug Bounty Wiki:

https://github.com/EdOverflow/bugbountywiki/wiki/CSS-injection

However, applying this technique inside sandboxed iframes reveals a practical way to spawn modal authentication dialogs where UI popups are expected to be blocked.

Security Considerations

Google's anti-malvertising team has discussed preventing sandboxed frames from showing confusing modal dialogs to users. Their concern explicitly included authentication dialogs:

Folks in Google's anti-malvertising team would like to be able to prevent sandboxed frames from popping up confusing, modal messages to users. This includes things like alert(), confirm(), and prompt() (and print() (and maybe authentication dialogs)).

Reference: https://chromestatus.com/feature/4747009953103872

I reported a proof of concept to Google. The response I received was:

I don't believe there are any bugs, because nobody (implementation + spec) said we should block those messages.

Reference: https://issues.chromium.org/issues/40266321

This indicates that, at the time of writing, authentication dialogs are considered out-of-scope for iframe sandbox popup restrictions by both specification and implementation.

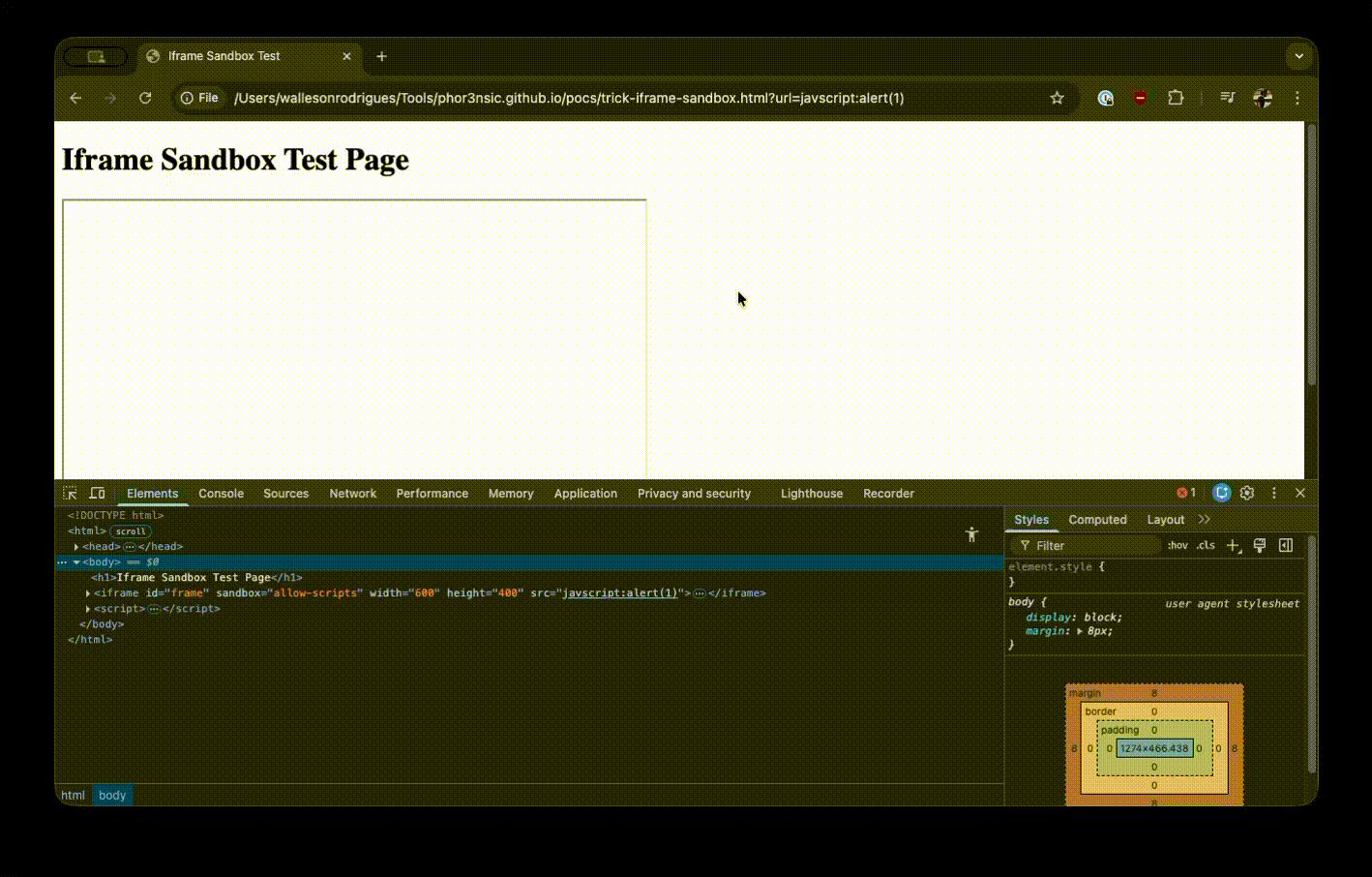

Proof of Concept

1. Visit: https://wallesonmoura.com.br/pocs/trick-iframe-sandbox.html
2. Provide a URL pointing to a Basic Auth endpoint in the url parameter.
3. Observe the authentication dialog appearing inside the sandboxed iframe.

Conclusion

This behavior may be abused to cause user confusion, potentially leak credentials through password manager extensions, or enable phishing-style UI redressing when combined with clickjacking or deceptive framing. Although currently considered "working as intended," it highlights an interesting gap between iframe sandbox UI restrictions and browser-controlled authentication dialogs.
